品牌:YYY
Applicable bottle size:Ф28 -Ф125
Capacity:16000bph
voltage:220V/380V
起订:1件
发货:40天内
发送询价
Description:
Double Driving Mechanism of YY-300 Sleeving label Machine
H type design of the mechanism meets the requirements of four-wheel drive, automatic
centering and four-wheel balanced pressure. Because of the design of the equal velocity ratio, it completely realizes the goals of accurate casing label, smooth label transmission, stable operation and swift label cutting.
Applicable Varieties for Trapping Label
With a breakthrough of the traditional technology of casting label, the equipment can integrate three to four trapping label machine varieties into one. It only needs to change the modules to realize the casting label of different varieties & types.
Specification:
| Description | Shrink sleeve label machine | |
| Model: | YY-300P | |
| power | (kw) | 1.5 |
| Voltage | (v) | 3，380/220VAC |
| Product speed | BPH | 18000 |
| Applicable Diameter of Bottle Body | (mm) | Ф28 -Ф125 |
| Applicable length of label | (mm) | 30~ 250 |
| Applicable Thickness of Label | (mm) | 0.03 ~0.13 |
| Applicable Internal Diameter of Paper Tube | (mm) | 5”~10” adjust freely |
| Size of Host Machine | (mm) | 2100L*1100W*2000H |
| Weight | (kg) | 300 |

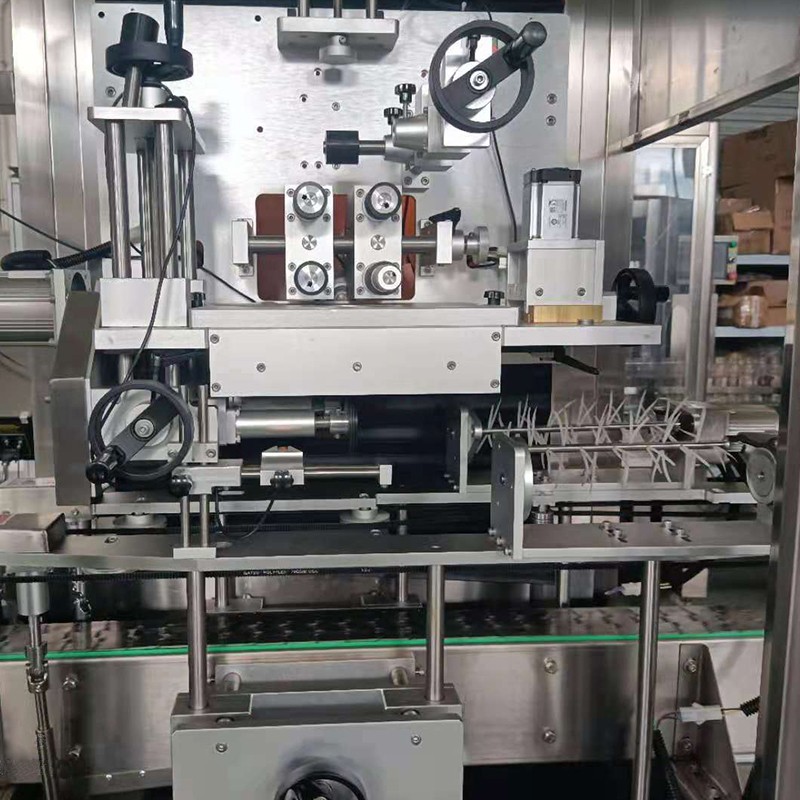

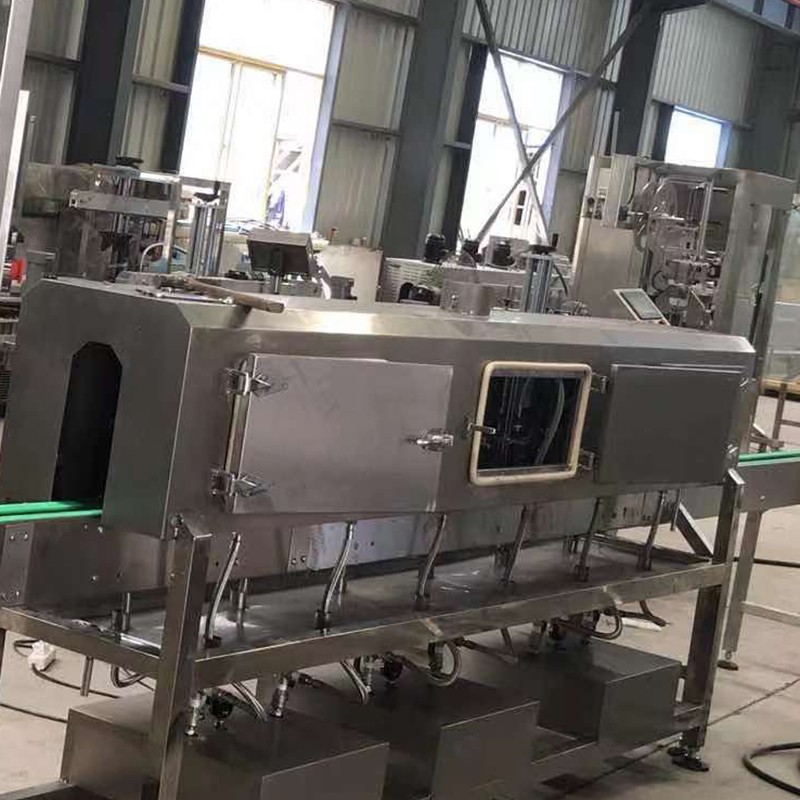

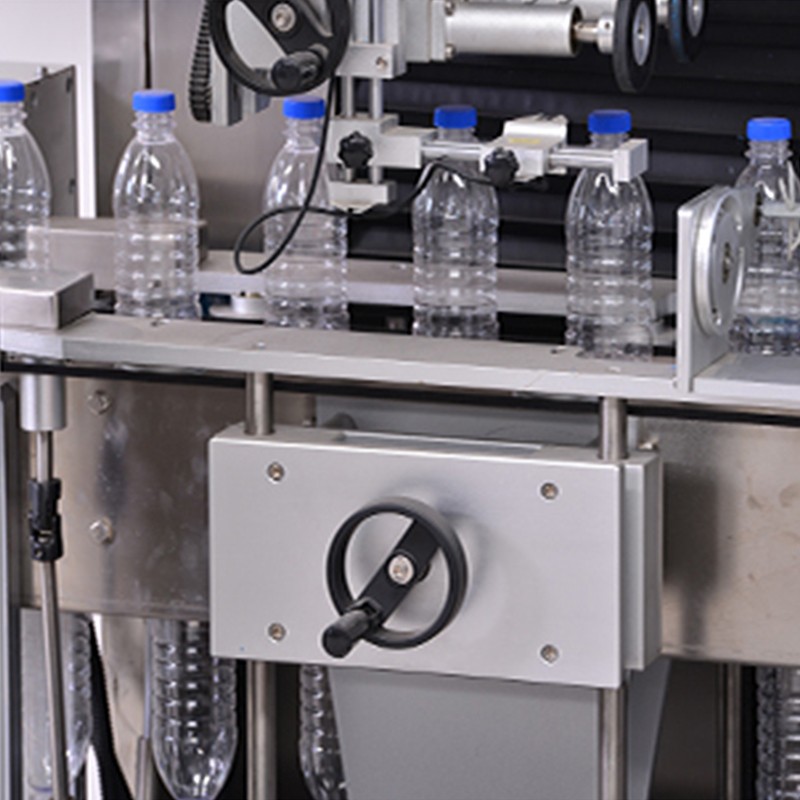

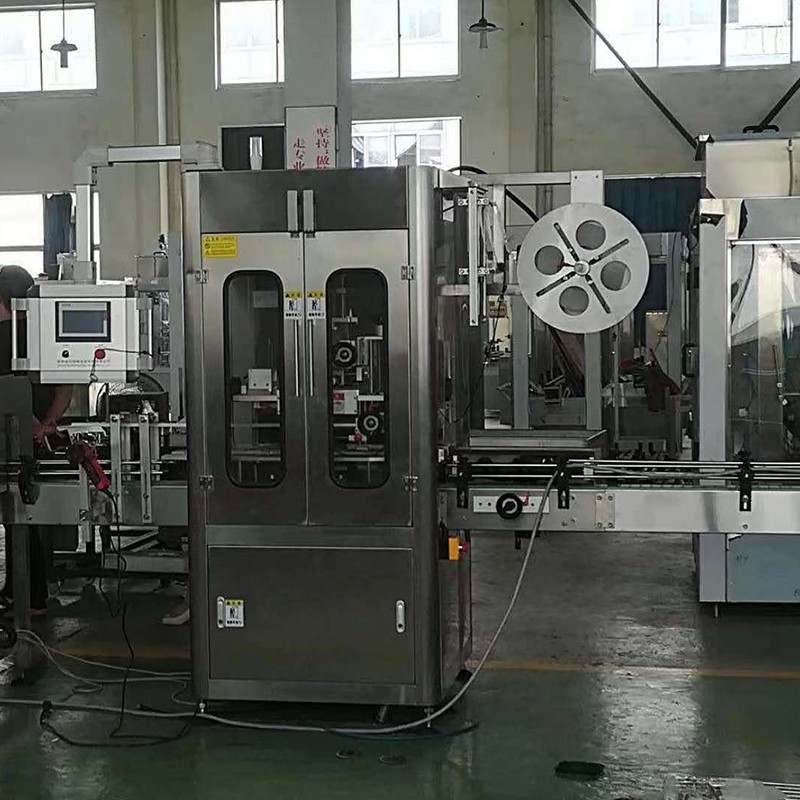

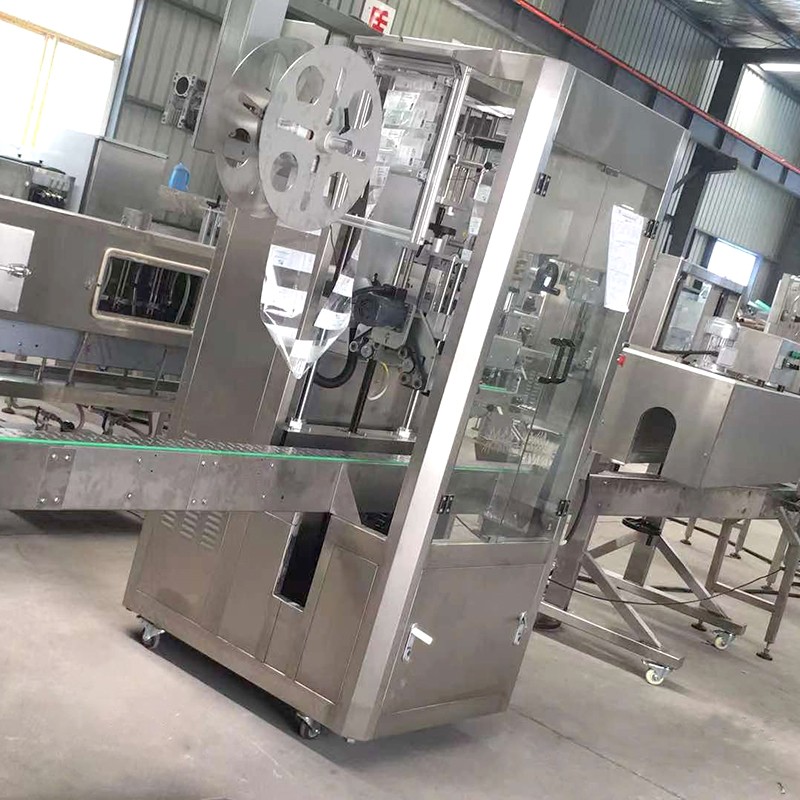

Product Photos:
