品牌:dafon machine
Overall Specifications:21/23*2.1*2.2
total mass:17.5T/19.5T
供应:1件
发货:30天内
This machine uses resin grinding disc, air pressure control grinding disc lifting, and multi-head continuous feeding production. It has the characteristics of high efficiency and low cost. Suitable for granite strip polishing process.
1. Product Introduction :

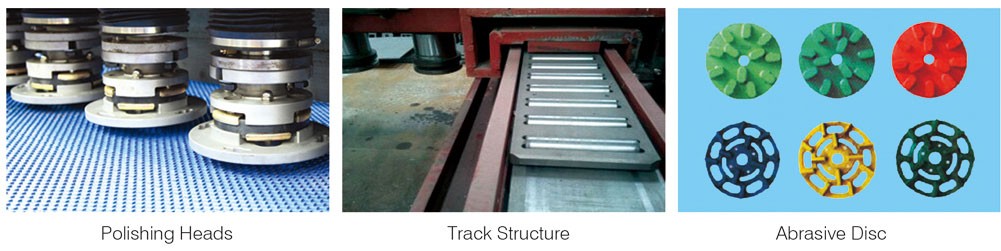

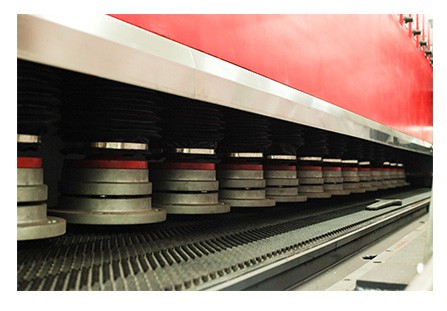

These machines are suitable for polishing Granite slabs or strips. Use the PLC system and liquid crystal display screen menu to offer intelligent control. Establish an Auto-dodging function and shape memory function. allocation of the abrasive consumption equipment. which has high automation operation and low labor strength. Allocation of the flexibility of Resin polishing heads. Prominent improvement in the polishing efficiency and polishing quality and greatly reduced abrasive consumption. Using the most advanced high-quality construction, and rational structure. high stability and efficiency and energy-saving operation. The power movement of polishing heads using the spread-allied set improves slab flatness, reduces movement consumption, and enhanced the longer working life. We can do the machines according to the client's requirements, like the number of heads, processing width, and length.
2. Technique Description :
I.Suitable for the surface polishing granite/marble

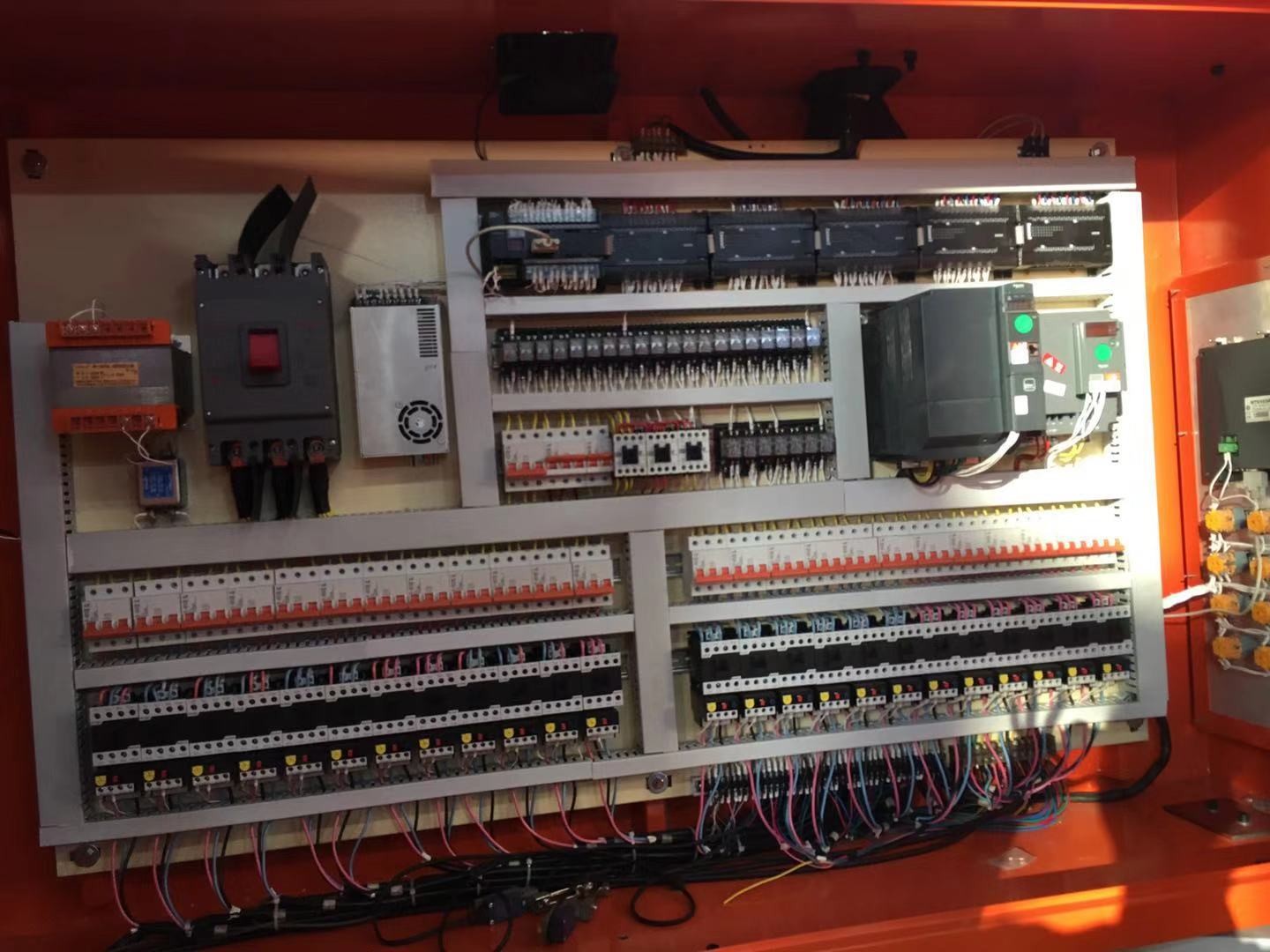

II.Using PLC intelligent control system and through the LCD touch screen human-computer dialogue, to achieve intelligent control.
III.A grinding head automatic collision avoidance and shape memory function, and is configured to abrasive wear alarm device, the machine has high automation degree, low labor intensity.
IV.Allocation of special granite grinding head/marble elastic grinding, polishing and polishing quality, and greatly reduced abrasive consumption.
V.Selection of sophisticated, reasonable structure, improving processing technology. finishing strong rigidity. Stable performance.
VI.Grinding head, grinding head upper part and key bearings are used in the central automatic lubrication system.
VII.Grinding power transmission using joint belt teeth narrow V belt, greatly reducing the power loss and increasing the service lift.
3.Technical Data
Appellation | |
polishing width | 300-1250mm |
polishing thickness | 15-50mm |
belt adv speed | 800-3700mm |
polishing head motor | 7.5kw ×16 heads |
total motor | 120kw |
weight | 15t |
water consumption | 15m³/h |
size | 7800 × 2100 × 2200mm |
frequency converter | Schneider (Germany) |
PLC system | Omron (Japan) |
contactor | Shihlin Electric (Taiwan) |
switch | SIEMENS (Germany) |
rails | HI-WIN (Taiwan) |
