品牌:dafon machine
Overall Specifications:3540*1600*2700 5210*2150*3600
power:55/65*2
供应:1件
发货:30天内

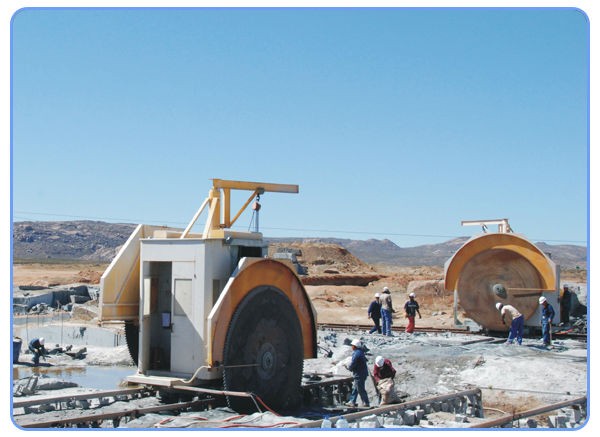

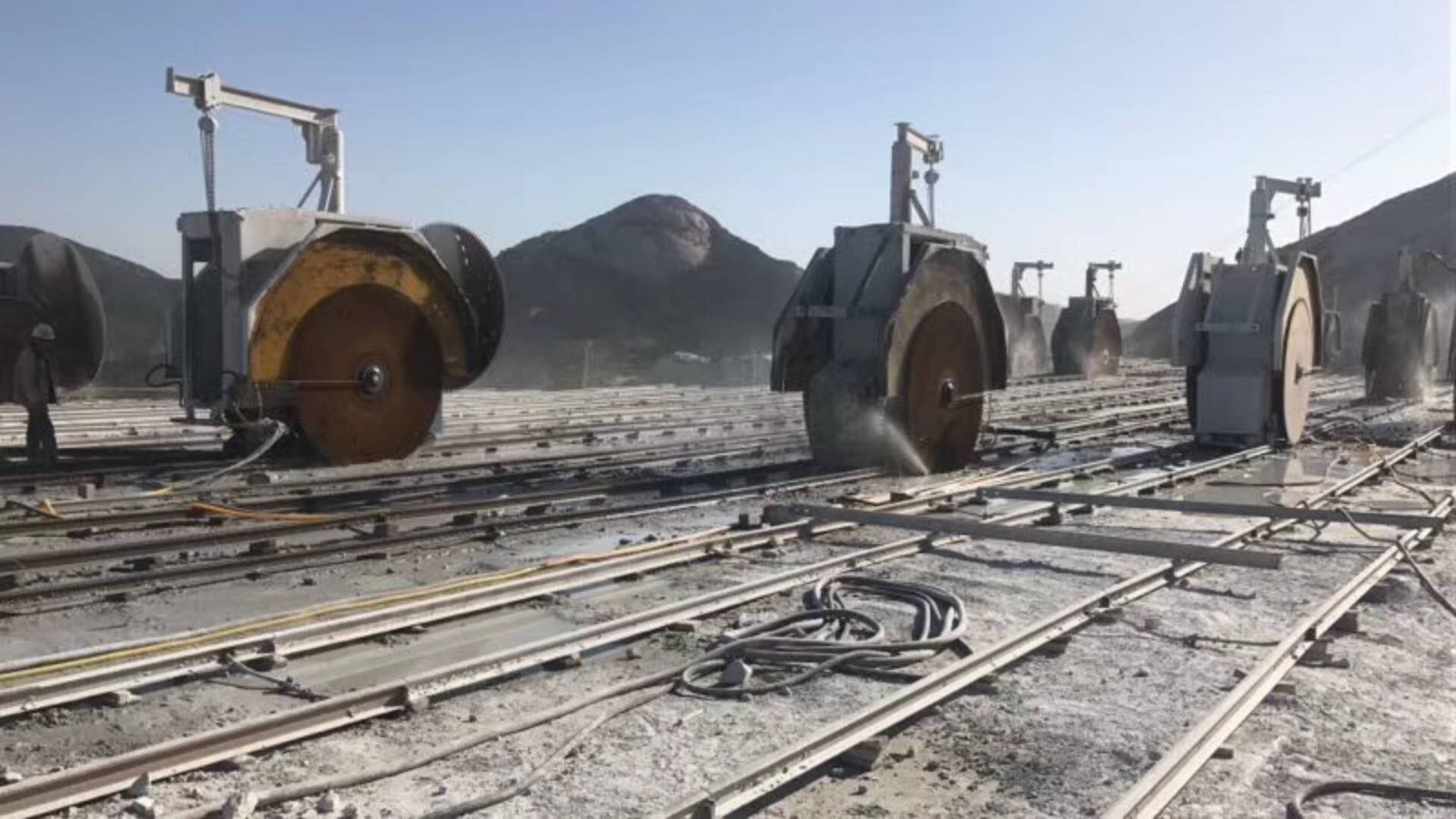

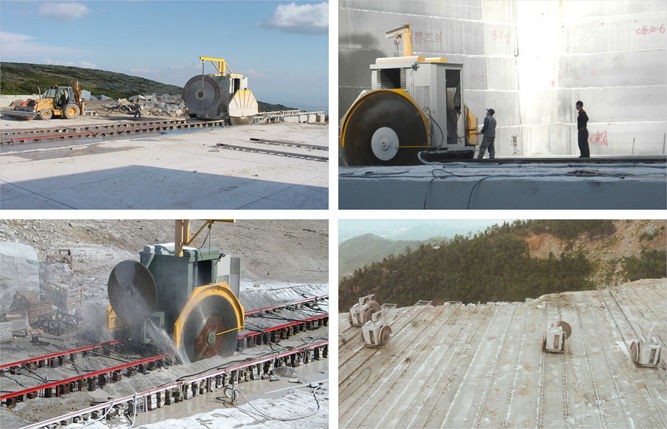

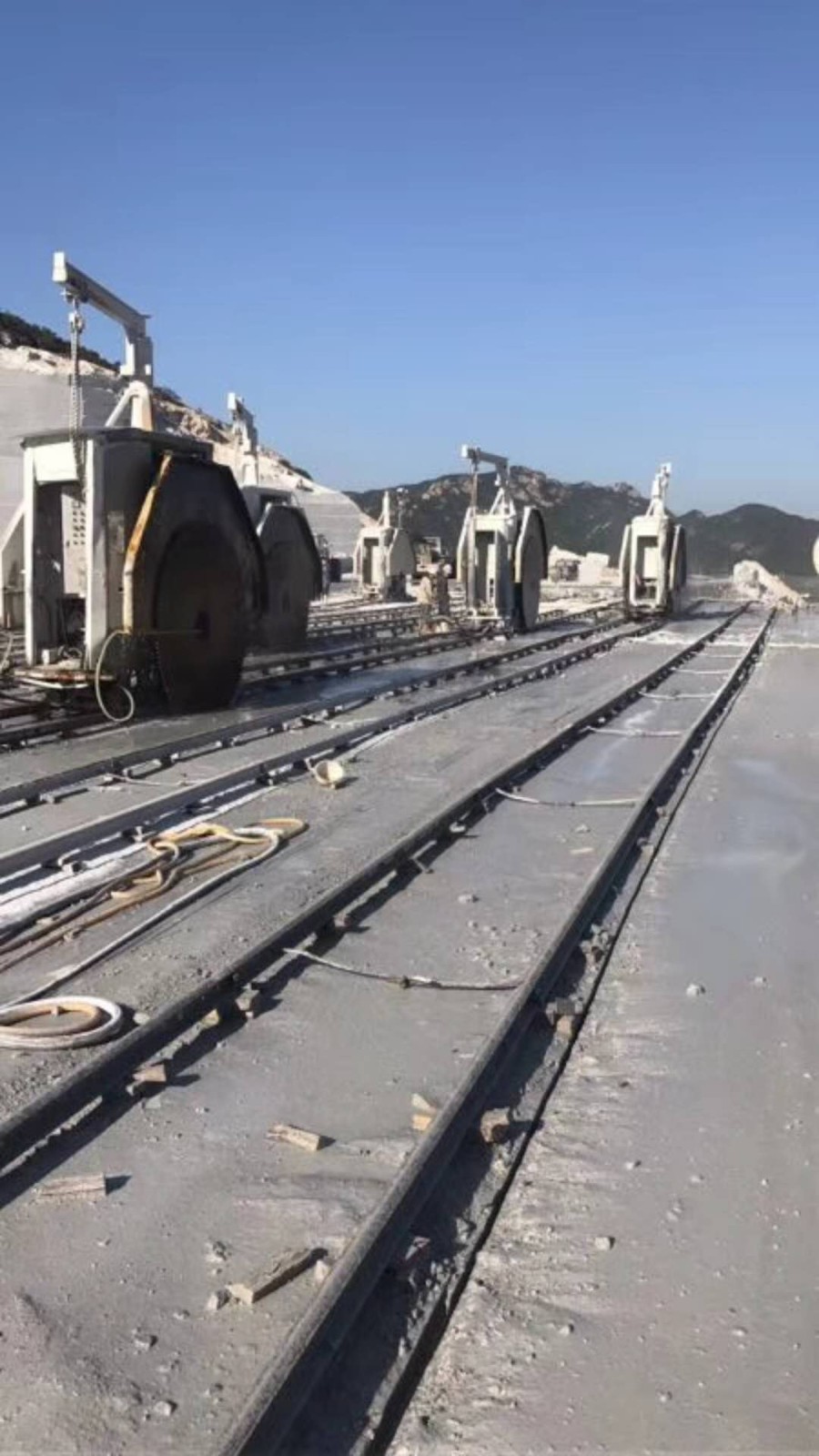

The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine.
The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision and improved service life of the cutter head.
Technical Data
name | Unit | DF1360/1900 | DF1500/2000 | DF1950/2450 | DF2600/3100 |
diameter of driving wheel | mm | Ø2200-Ø3500*2 | Ø2200-Ø3600*2 | Ø2200-Ø4800*2 | Ø2200-Ø3500*2 |
cutting width | mm | 1360-1900 | 1500-2000 | 1950-2450 | 2600-3100 |
max cutting height | mm | 1500 | 1550 | 2150 | 2150 |
main motor power | kw | 45/55*2 | 45/55*2 | 45/65*2 | 45/65*2 |
water | m³/h | 5 | 5 | 5 | 5 |
total power | kw | 97.7/117.7 | 97.7/117.7 | 99.2/139.2 | 99.2/139.2 |
dimension | mm | 3540*1600*2710 | 3540*1680*2710 | 5210*2150*3600 | 5210*2710*3600 |
total weight | kg | 8000 | 8000 | 11500 | 12000 |
