品牌:dafon machine
Overall Specifications:2350*1460*1450
weight:3000kg
供应:1件
发货:30天内
Product Details
Technical Parameters
Model | ZY-45G-8P | ZY-55G-8P | ZY-75G-8P |
Main motor power | 45KW-8P(60HP-8P) | 55KW-8P(75HP-8P) | 75KW-8P(100HP-8P) |
Flywheel diameter | Φ800mm | Φ800mm | Φ800mm |
Wire saw speed | 0-30m/s | 0-30m/s | 0-30m/s |
Max. wire saw length | 20-80m | 20-100m | 20-120m |
Walking motor power | 0.75KW(1HP) | 1.5KW(2HP) | 1.5KW(2HP) |
Lateral moving distance | 390mm | 500mm | 520mm |
Max. lateral cutting distance | 1700mm | 1900mm | 2050mm |
Rotation angle(electric) | 360° | 360° | 360° |
Walking speed of the machine | 0-60m/h | 0-90m/h | 0-90m/h |
Rail length | 2m*3+1m | 2m*3+1m | 2m*3+1m |
Allowed working temperature | -15~+40℃ | -15~+40℃ | -15~+40℃ |
Dimension: L*W*H: | 2350*1460*1450mm | 2500*1600*1530mm | 2550*1680*1570mm |
Net weight | 3.0T | 3.5T | 4.3T |

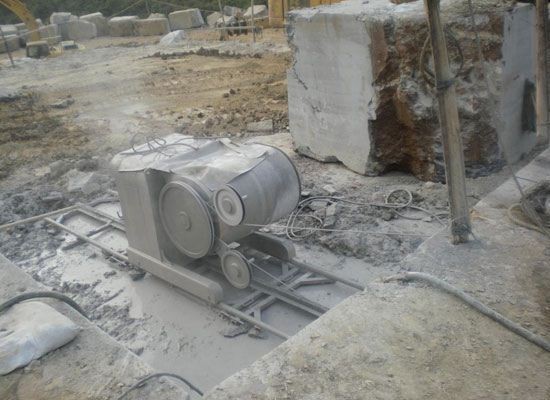

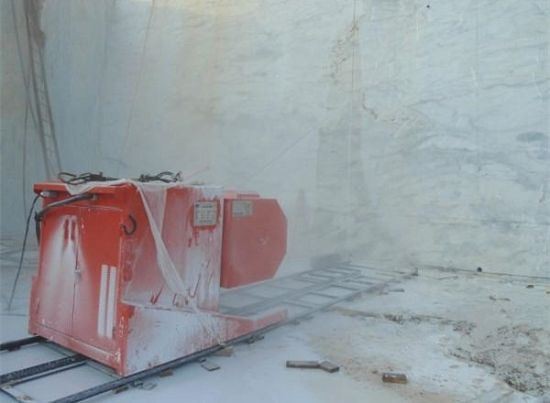

At present, wire saws can be widely used in the mining of various hardness stones such as granite and sandstone. The product quality is getting higher and the cost is getting lower and lower.
Machine Features
1. Using frequency converter + PLC control, the motor can be stepless speed regulation.
2. Using digital communication, the control circuit is simple and the failure rate is low.
3. Control panel is a fixed HML screen. It's waterproof and dust-proof, which also has dynamic display images and working information, like input voltage, cutting data, and working time.
4. Intelligent fault detection of equipment system, alarm protection and prompt solutions, timely treatment, User-friendly.
5. Using PID technology, the machine can be adjust feeding speed automatically according to the changing load of the main motor, which keeps the wire tension constant and extend the wire life span.
