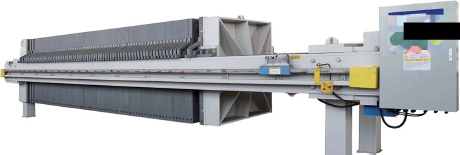

high pressure filter press1000

2024-04-09 10:12485
价格:¥259000.00/件
品牌:dafon machine
Overall Specifications:8360*1350*1870
weight:7350 kg
起订:1件
发货:15天内
发送询价

Features:

1. The system adopts electro-hydraulic integration, PLC program control, realizes a fully automatic pull plate, simple operation, and reduces personnel consumption.

2. The automatic liquid collection flap is used to solve the disadvantages of incomplete separation of slag and water, improve product quality and reduce environmental cleaning pressure.

3. The filter plate is made of imported polymer PE material, which is formed by high pressure die-casting at one time and has a longer service life.

4. According to the performance and specific gravity of the material, the solid content rate of the ordinary filter press can be increased by nearly 10%.

5. Unique φ1000mm panel design, high output, low energy consumption, stable system operation, safety and reliability.

6. The unique roller handle design makes the operation more labor-saving and convenient, and greatly reduces labor intensity.

7. High-standard production technology and technology, real materials, to ensure the high quality of each machine, is ideal solid-liquid separation equipment.



Technical parameters:

Filter area/m2

Filter plate size/mm

Filter plate thickness/mm

Number of filter chambers/pc

Filter cake thickness/mm

Theoretical volume/L

Foot center distance/mm

Filter pressure/Mpa

Power/kw

Dimension/mm

Weight/kg

80

φ1000

63

60

30

1500

6120

≤2.0

4

7200*1100*1740

6650

100

φ1000

63

60

30

1725

6120

≤2.0

4

7200*1100*1740

6650

100

φ1000

80

80

30

1942

6700

≤2.0

4

7780*1350*1870

7000

130

φ1000

63

80

30

1950

7280

≤2.0

4

8360*1350*1870

7350

130

φ1000

80

100

30

2574

7280

≤2.0

4

8360*1350*1870

7350
