品牌:HBSX
Voltage:220V/380V/440V/as requirements
Core Components:PLC,Pump,Stations,rollers
Warranty of core components:13 months
起订:1件
供应:10件
发货:15天内

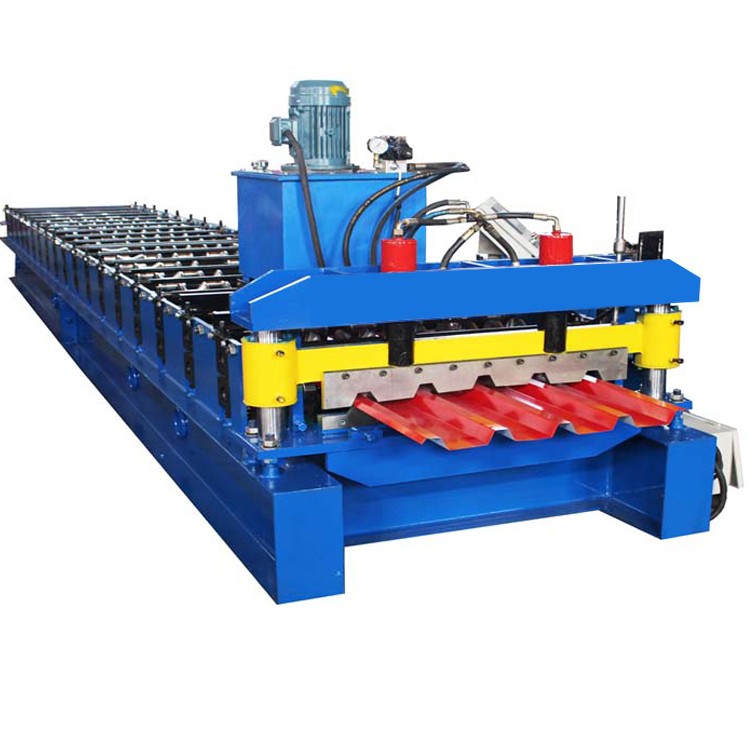

IBR 686 ibr metal sheet roof panel roll forming machine/roof press making machine

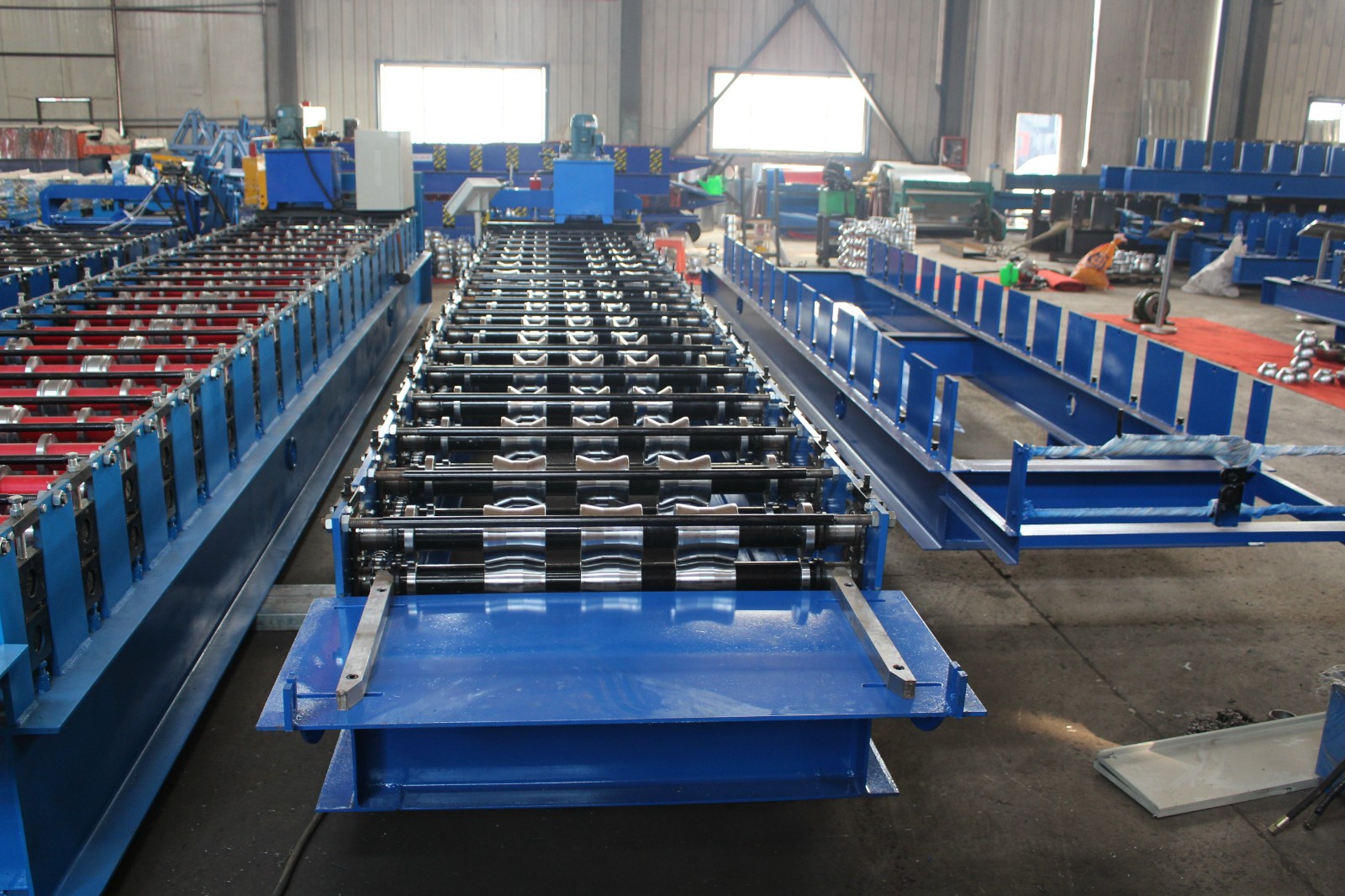

Roof tile making machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,pressing die,shearing device,hydraulic station,PLC control console and so on.Our company has dozens of profile models for this series roll forming machine,We can design different kinds of profile and fittings for machine,as per customers’ requirement.
1 Suitable material color steel sheet, galvanized steel sheet, aluminium sheet
2 Material width your required
3 Material thickness 0.3-0.8 or as your required
4 Working speed 8-12m/min, can be 20-25m/min
5 Main motor power 5.5kw with cycloidal with reducer
6 Hydraulic pump power 4kw
7 Electrical control system PLC control system with inverter
8 Shaft diameter 75mm
9 Roller station 18 rows, depend on your panel profile drawing

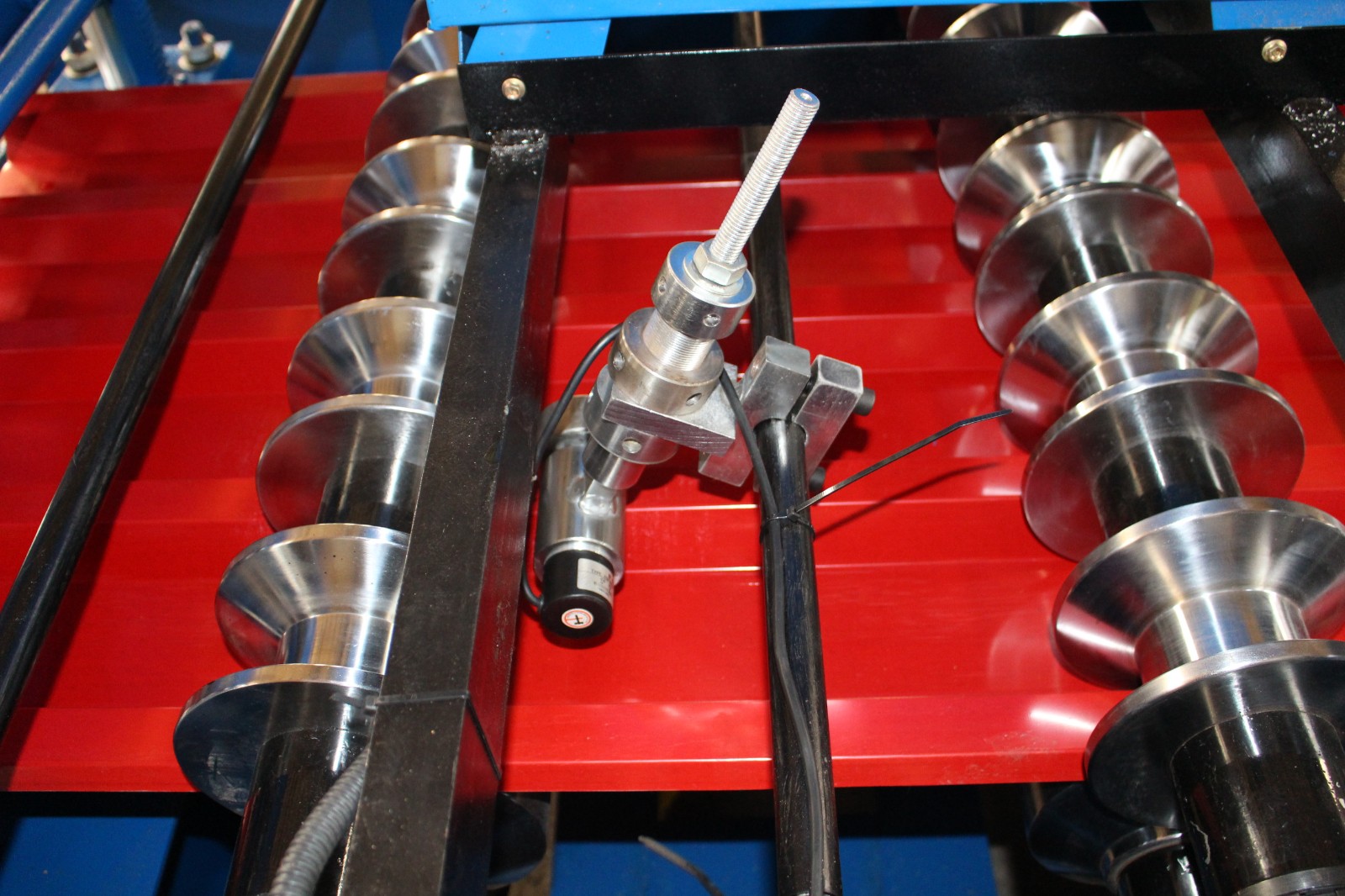

10 Roller high grade 45# steel, hard chrome plating
11 Working time 24 hours
12 workers 1-2 only
13 Cutting head material Cr 12 mould steel with quenched treatment
14 Voltage 380V 3Phase 50Hz or as your required
15 Weight 3.5T
16 The machine size 8500mm*1500mm*1500mm
Our Company Main Roll Forming machines
1. Different types of roof profile drawing forming machine ;
2. Curve roof roll forming machine; 3. Ridge cap roll forming machine;
4. Floor deck roll forming machine; 5. Rain gutter roll forming machine;
6. Downpipe roll forming machine; 7. Highway guardrail roll forming machine;
8. Roller shutter door forming machine; 9. Door frame roll forming machine;
10. CZU purlin roll forming machine; 11. Light keel roll forming machine;
12. Slitting machine (lines); 13. Shearing/bending machine;
14. Decoiler(Hydraulic decoiler, electric decoiler and manual decoiler) and so on
