品牌:净泽源
XS-80:20t/h
XS-100:50t/h
XS-125:80t/h
起订:100件
供应:2件
发货:30天内
Introduction
Due to it shows remarkable effect in the field of water treatment for sand removal, turbidity and solid-liquid separation.So it is widely used in the following fields.
Water for life:
Cyclone Filtration Filter integrates cyclone and filtration. It mainly used to remove the groundwater and underground water and other solid particles in water
Water source heating pump system
Central air conditioning cooling water
Chilled water system
Winter heating circulating water systems
Chemical industry:
Environmental protection.
Food industry.
Industrial cooling water system
Medicine and etc.

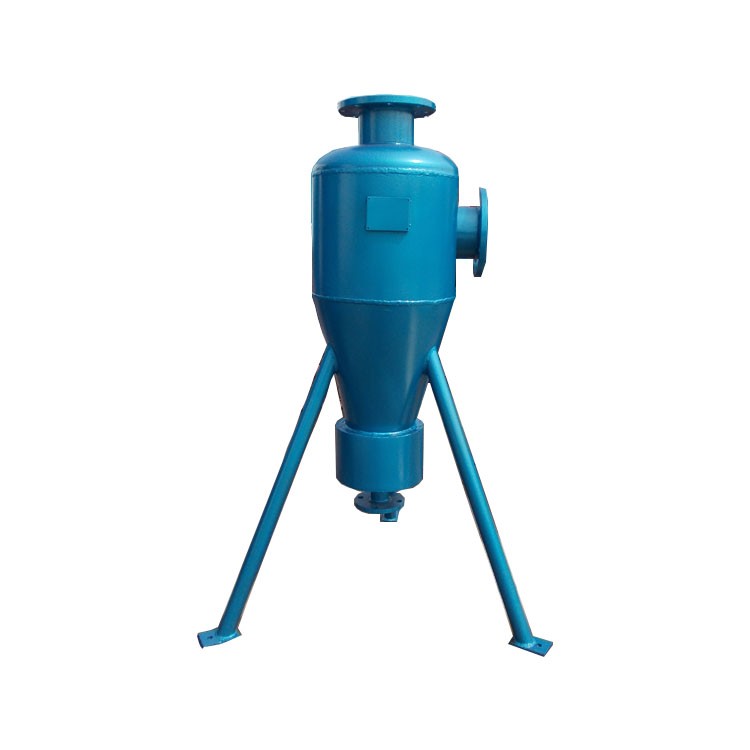

Cyclone Filtration Filter &Working Principle
Our Cyclone Filtration Filter is a new type of separation equipment.It is based the laws of solid particles in the fluid rotating in the desander.Then combined with the filter device to achieve who clean..
First step：The water enters the equipment tangentially from the intake of the desander under a constant pressure.The the inside of this device will produce strong rotational motion. Under the action of centrifugal force, centripetal force, buoyancy and fluid drag force.Due to the different densities of sand and water.The water can be transferred to the equipment. The water with low density rises and is discharged from the water outlet.And the sand with high density is discharged from the sewage outlet at the bottom of the equipment.
Second step： Filter device blocks the tiny particles.So as to achieve the purpose of sand removal.This is a very fast process.
Cyclone Filtration Filter&Characteristics:
No energy consumption.
Better sand removing effect, especially suitable for sand content higher system using.
Lower cost,also can save you money.
Convenient installation and operation, safe and reliable operation
Small size, processing a large quantity of water, small occupied area.
