品牌:YYY
Applicable bottle size:Ф35 mm-Ф50mm
Capacity:6000bph
voltage:220V/380V
起订:1件
发货:40天内
发送询价
Description:
Configuration of YY-100P
Machine production efficiency: 100 Bottle/min
Independent feeding material shelf. Computer autocontrol
automatic detection，automatic positioning
exchange quickly label , Save Labor，cut accurately label
Electrical Appliance Configuration Instructions
YY-100P type is a low-speed machine, but it adopts equivalent PLC, positioning module, servo motor and frequency converter, it also adopts a touch screen featured with a humanized operation.
Applicable Bottle types
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.
Specification:
| Item： | Bottle neck label sleeving machine | |
| Model: | YY-100P | |
| power（kw) | (kw) | 1 |
| Voltage (v) | (v) | 3，380/220VAC |
| Product speed （b/m） | BPH | 100-150 |
| Applicable Diameter of Bottle neck（mm) | (mm) | Ф35 mm-Ф50mm |
| Applicable Diameter of Bottle Body (mm) | (mm) | 35~ 55 |
| Applicable Thickness of Label(mm) | (mm) | 0.03 ~0.13 |
| Applicable Internal Diameter of Paper Tube(mm) | (mm) | 5”~10” adjust freely |
| Size of Host Machine(mm) | (mm) | 780L*1200W*2000H |
| weight（kg) | (kg) | 200 |

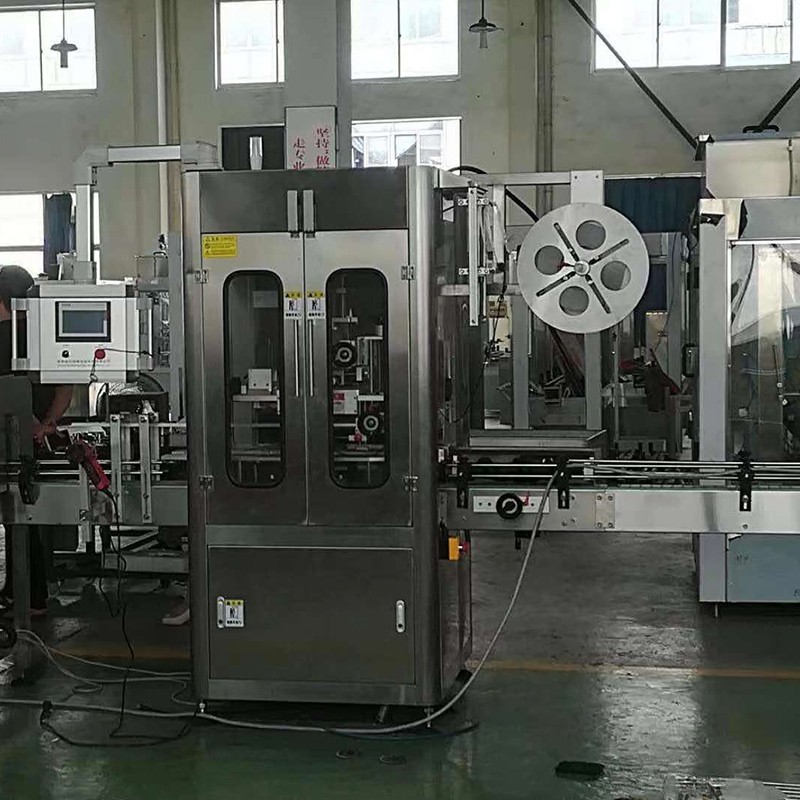

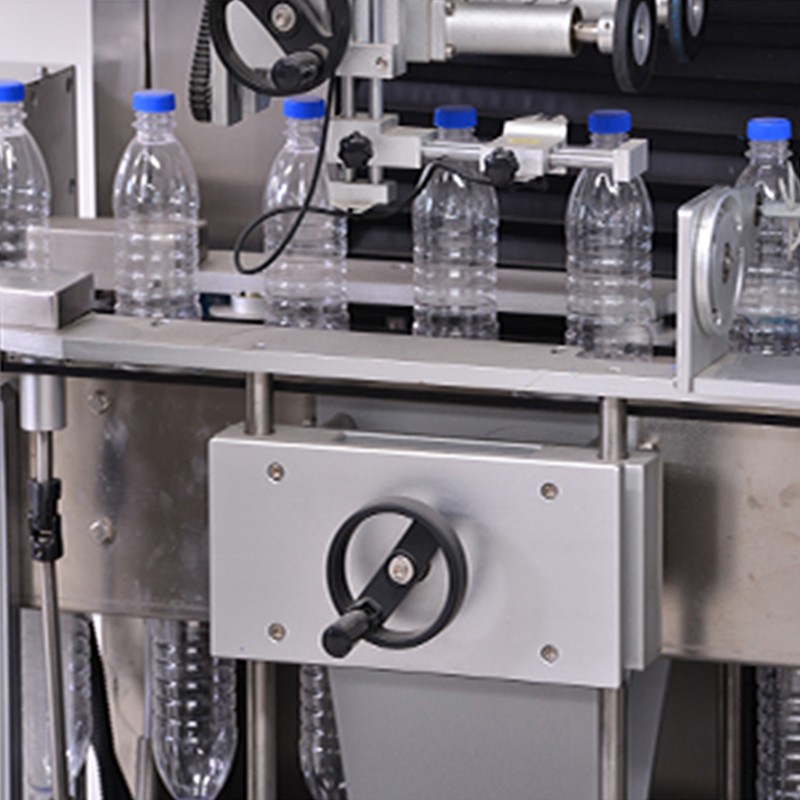

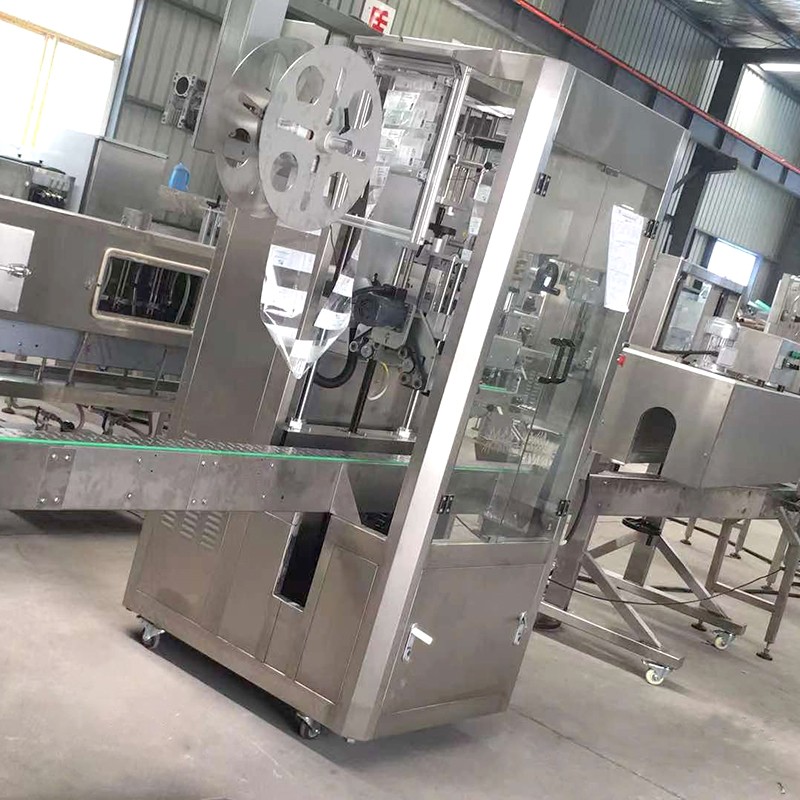

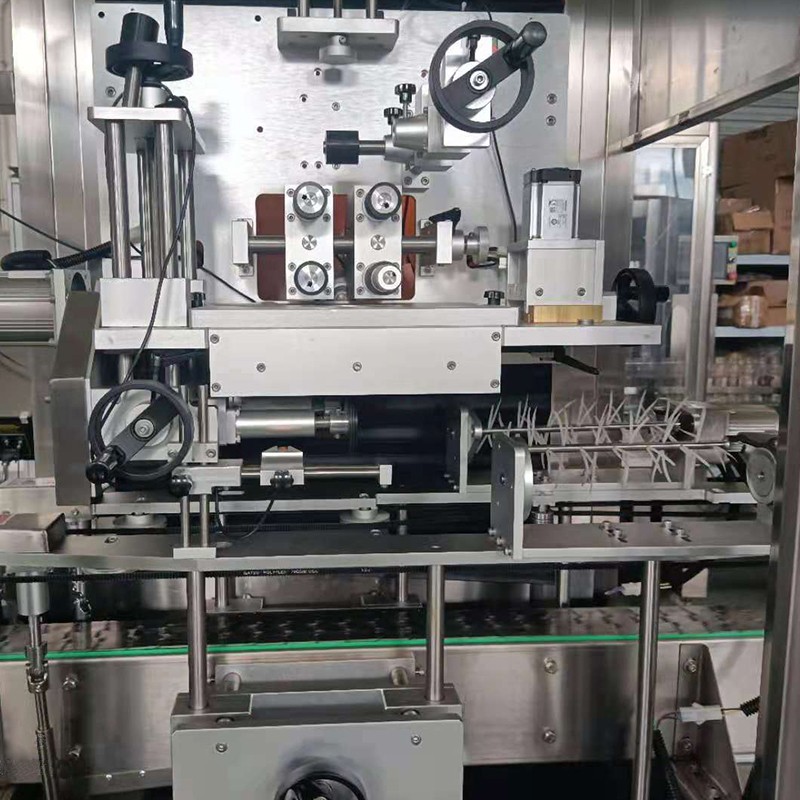

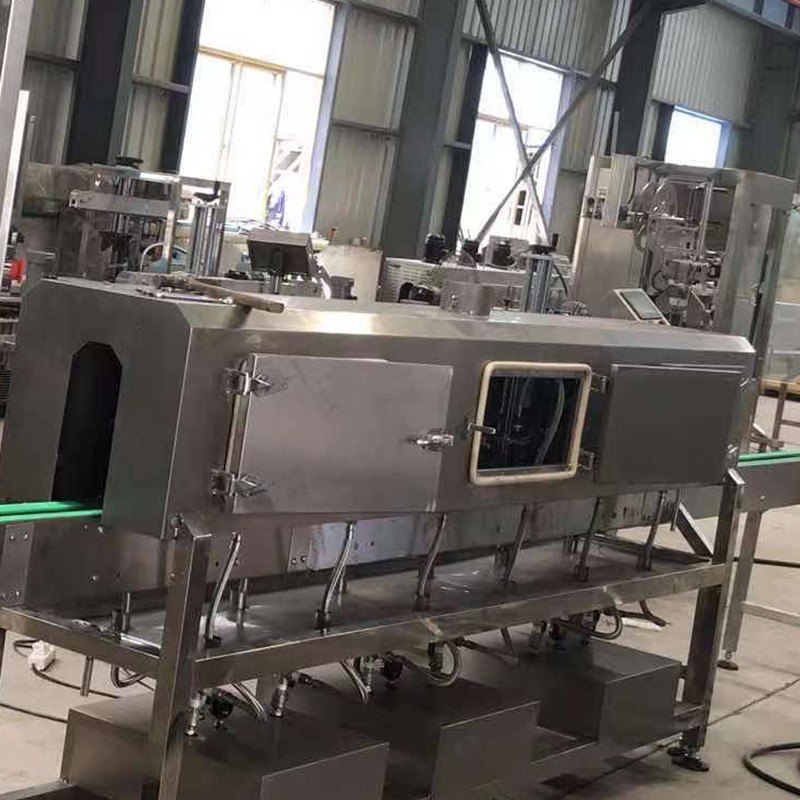

Product Photos:
