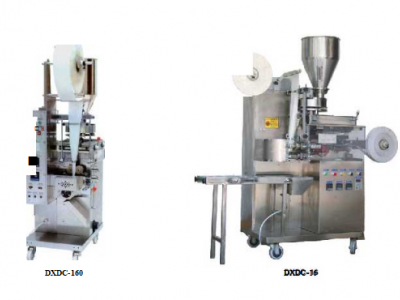

袋泡茶自动包装机
Automatic tea-bag packaging machine
适用范围/Applications
适用于碎茶，药茶，咖啡等类似产品自动包装。
It's suitable to use in automatically packing fannings, tisane, coffee etc.
主要特征/ Main standard features
包装袋帯提线，可自动完成制袋计量，充填，封合，分切，计数。
Packaging bags with string thread, the processes of making, measuring,
filling, sealing, cutting, counting can be completed automatically.
包装材料/Packaging material
茶叶滤纸 Tea-leaf filtering paper
主要参数 Main technical data
型号/Model | DXDC-160 | DXDC-16
|
包装速度 Packaging speed (bag/min)
| 28-55
| 28-55
|
制袋尺寸Bag Size (mm) | L50-80 W-45-75
| L50-110 |
计量范围Filling range（ml） | 5-10 | 1-10 |
标签尺寸/Tag size (mm） | - | L：18-30 W：18-30 |
线长/Thread (mm) | 160 | 160 |
包装形式/ Bag shape
| 三边封/3 sides
| 三边封/3 sides
|
电源/Power (V/kW) | 220/1.4
| 220/2.1
|
包装尺寸/ Dimension (mm) (L×W×H)
| 700x1100x1800
| 700x1200x1700 |
