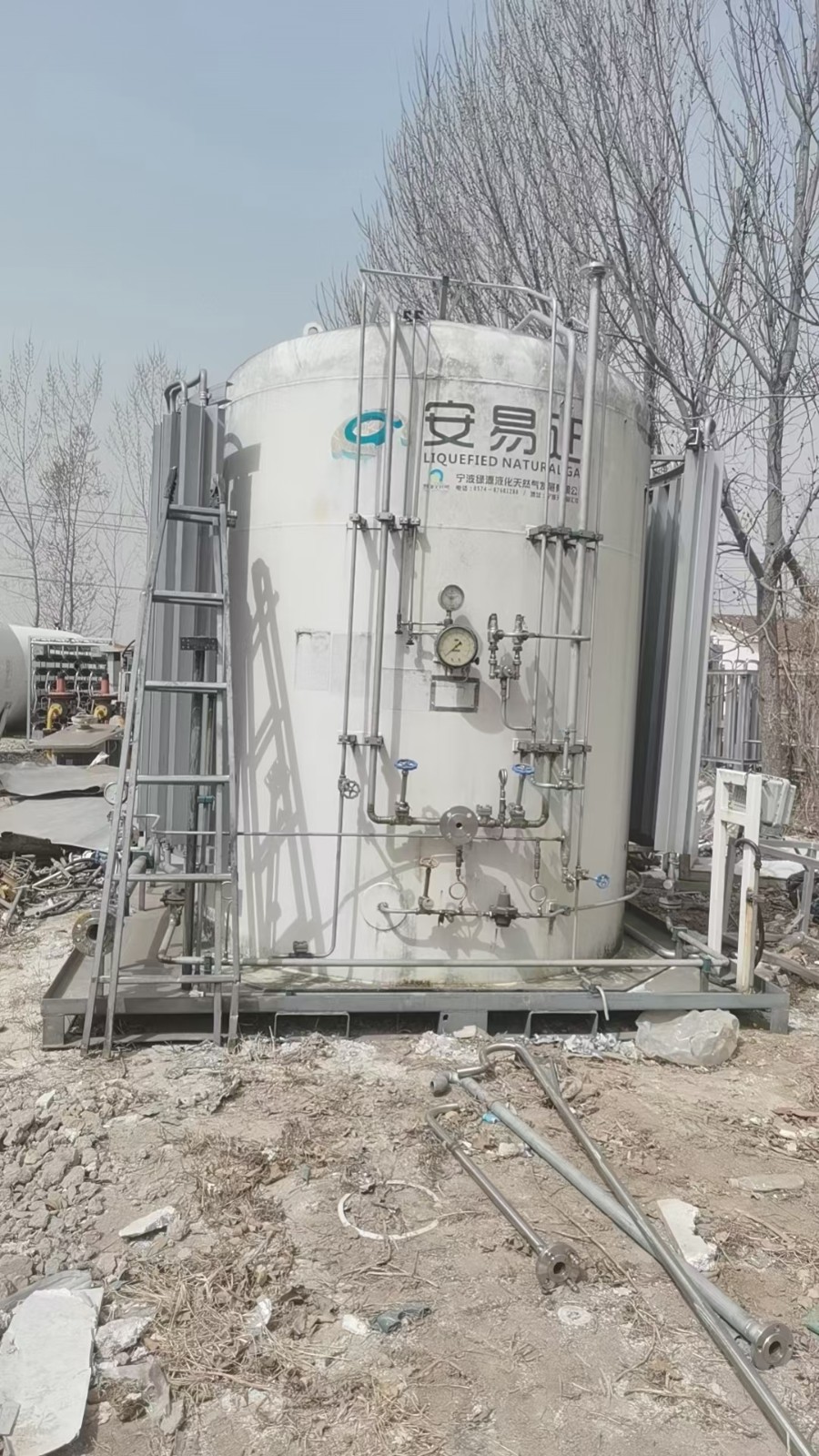

Used Storage Gas Storage Tank9
Dewar Tank Liquid Storage Tank
second-hand gas storage tank6
Used Storage Gas Storage Tank7
Used Storage Gas Storage Tank9
second-hand gas storage tank7
Used Storage Gas Storage Tank5
- Tank Marerial：
- Metal tank
- Storage Objects：
- Liquid;Gus
- Condition：
- Used

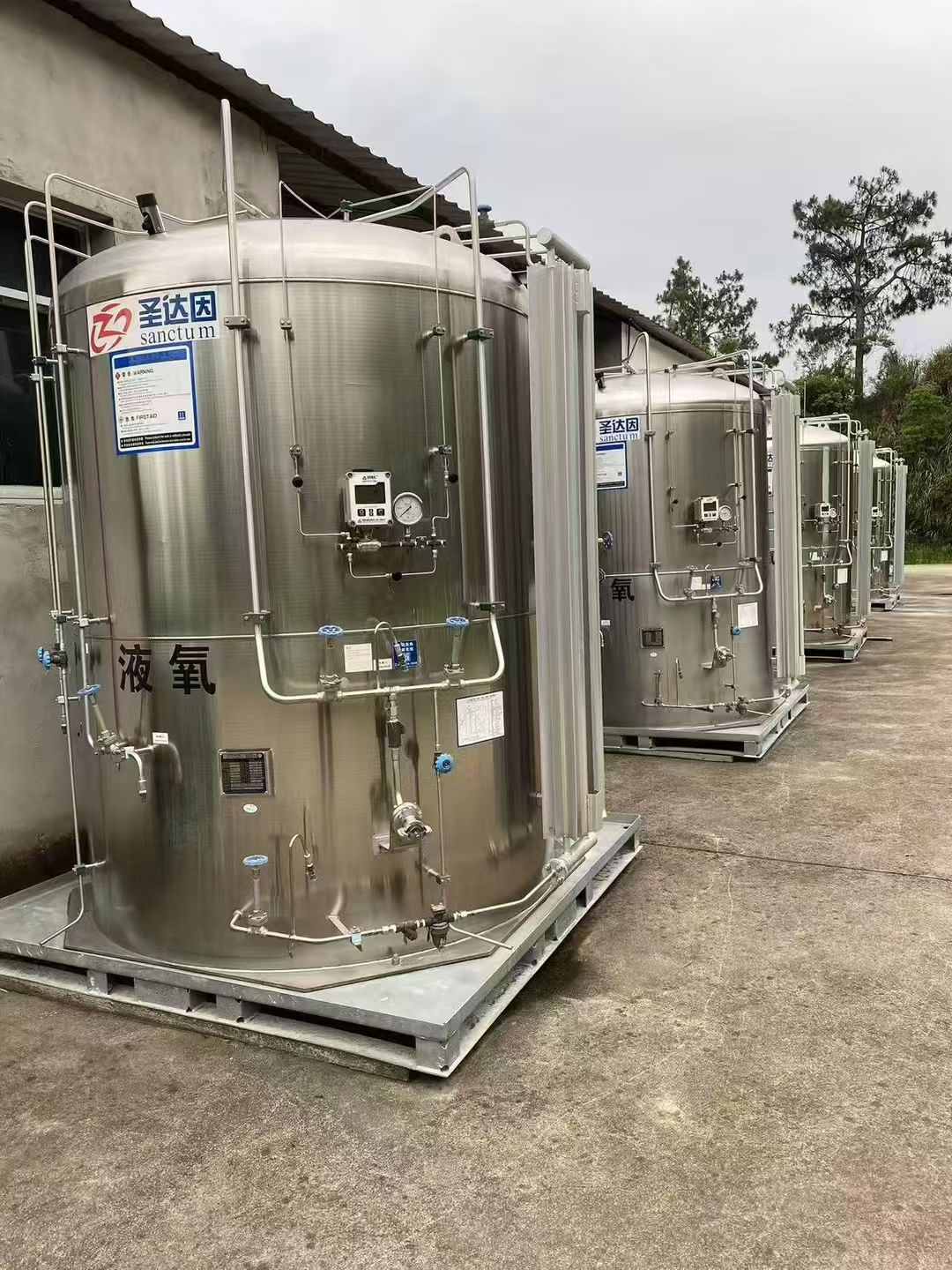

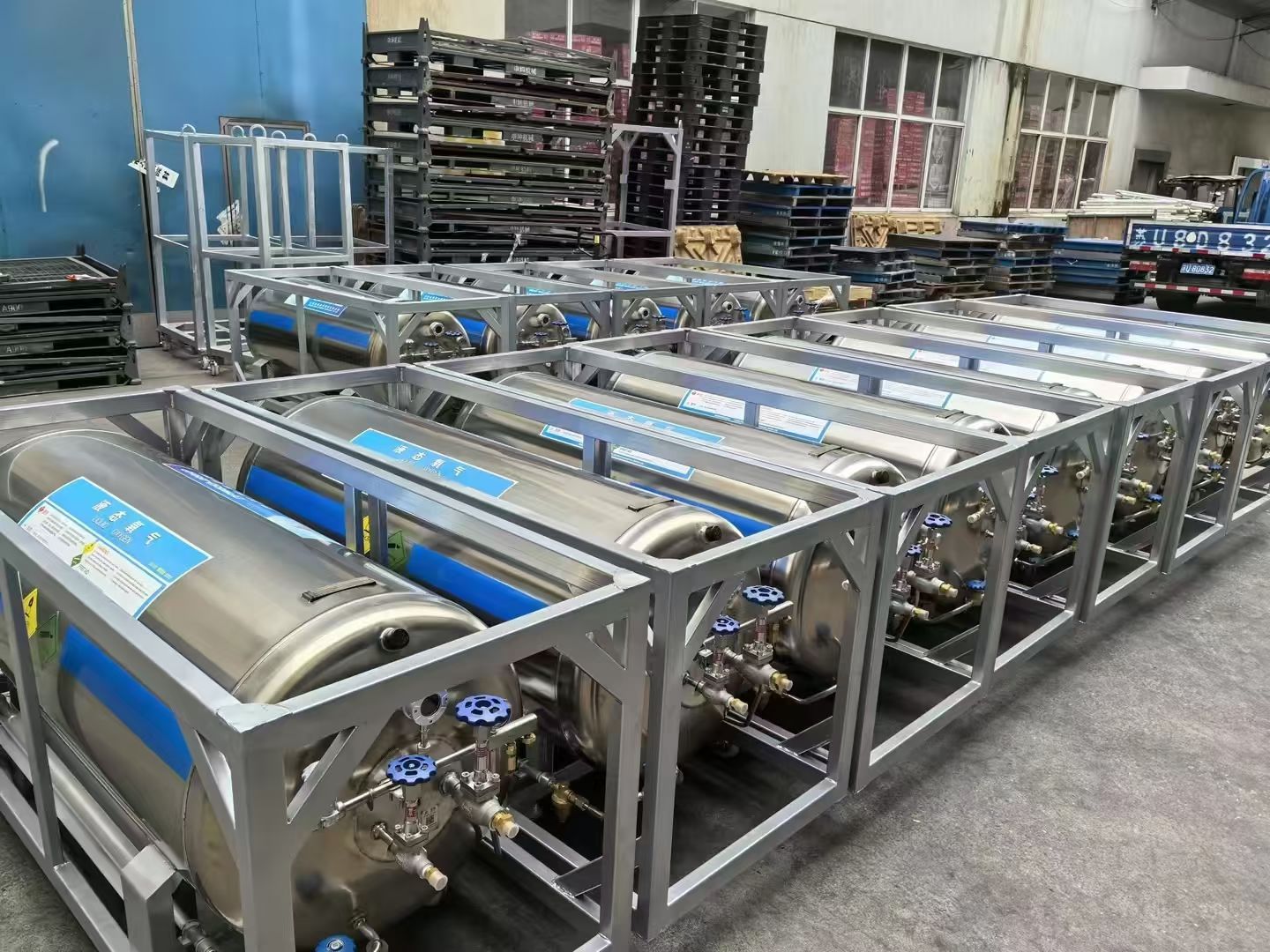

A cryogenic storage dewar (named after James Dewar) is a specialised type of vacuum flask used for storing cryogens (such as liquid nitrogen or liquid helium), whose boiling points are much lower than room temperature.
Precautions are taken in the design of dewars to safely manage the gas which is released as the liquid slowly boils. The simplest dewars allow the gas to escape either through an open top or past a loose-fitting stopper to prevent the risk of explosion. More sophisticated dewars trap the gas above the liquid, and hold it at high pressure. This increases the boiling point of the liquid, allowing it to be stored for extended periods. Self-pressurising designs use the gas pressure in the top of the dewar to force the liquid upward through a pipe leading to the neck.
Product Name | Cryogenic Liquid Dewar Flask |
| Specification | 195L |
| Norminal Working Pressure | 2.05MPa |
| Opening Pressure of Safety Valve | 2.27MPa |
| Dimension(D*H) | 508*1629mm |
Weight | 141kg |
| Material | Stainless Steel |
Standard | ISO, GB |
Useage | LOX,LNG,LAr,LCO2,LN2O,LN2 |
| Static evaporation rate(%/d) | 2.1%/d |
Advantages:
1. The product has high hardness and is not easy to be damaged.
2. The valves are made of high-quality raw materials, which are durable and not easy to break.
3. Part: handling wheel & outer upper cover
4. Feature: the handling wheel is welded firmly and smoothly
5. The head cover is torispherical head, made by cold stamping, no splicing, the whole cover real thickness NOT less than 2.15mm and under
refined polsh processing.
Company Profile
1. What is your daily production capacity?
Our production capacity every year is 80~100 units.
2. What products can you provide?
We specialize in offering a wide range of cryogenic storage tanks, such as LCO2, LAr, LNG, LPG, LOX and so on .
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitive
4. What's The Time For Delivery & Arrival?
If the standard models are in stock, then we can ship them out within 30 days after payment.
If customized, 40 days can be ready for shipment.
